레이저 간섭계

MJS 시리즈 레이저 간섭계에는 데이터 저장 및 처리 및 오류 평가를 위한 노트북 컴퓨터가 필요하며, 고정밀 다중 좌표 측정 시스템 개발을 위해 인서트 플레이트 PC도{0} 있습니다.{1} 레이저{2}}센서를 기반으로 합니다.

주요 응용 프로그램

● An ideal tool for checking the position accuracy of CNC machine tools and coordinate measuring machines. It can process the measurement data and print out the error curve according to the specified standard, which provides a reliable basis for the correction of machine tools.

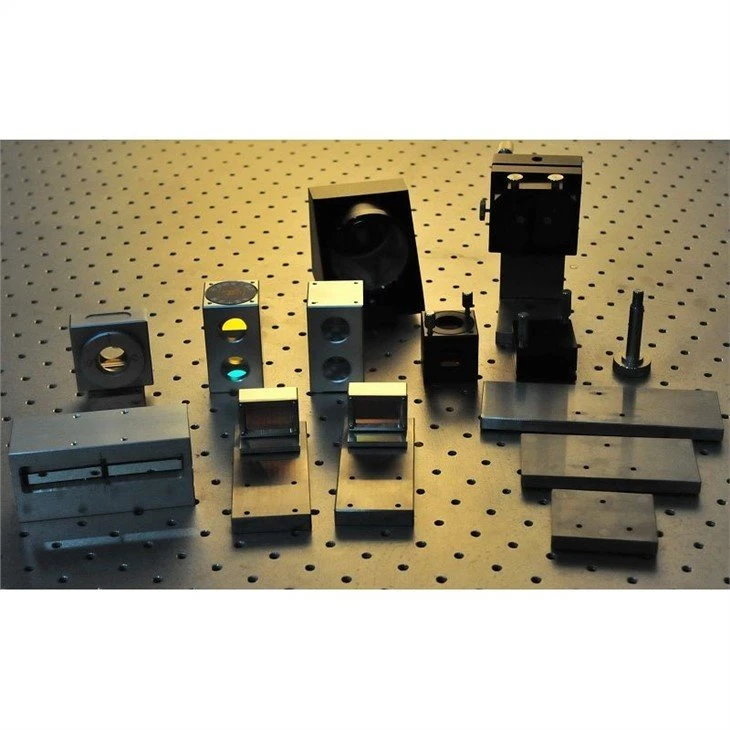

● Equipped with various accessories to measure small angle, flatness, straightness, parallelism, perpendicularity and other form and position errors. It is especially convenient to use in the field.

● Can be easily installed on the length measuring machine, replacing the coordinate system of the original length measuring machine, and used as the length reference in the general measuring room.

● A high-precision displacement sensor, which can be directly installed on precision machine tools such as coordinate boring, screw grinding and coordinate measuring machines as a coordinate system, so that the positioning accuracy is greatly improved.

● Has the function of detecting and marking the positioning of precision measuring elements such as grating, magnetic scale, linear scale, induction synchronizer, etc. The instrument can automatically complete the detection and marking work according to the predetermined spacing.

● Combined with the circular indexer into a set of high precision length-angle ratio phase meter, it can be used for the measurement of errors in machine tool drive chain, screw spiral line, etc.

특징:

● Specially made imported laser with a working life of more than 10 years.

● High-performance frequency stabilization system ensures the stability of the instrument.

● Unique subdivision technology, high resolution and reliable work.

● Automatic laser wavelength correction, especially suitable for factory floor site use. Rich application software, rapid processing of measurement data according to relevant standards. Modular structure, small size and light weight.
